Aircraft Type
M600
Base Aircraft Price (USD)
/
Direct Operating Cost
$ 603
DOC / nm
$ 2.19
DOC / nm / Seat
$ 0.55
Max Cruise Speed (ktas)
274
Max Range (nm)
1406
Useful Load (lbs)
2200
Total Seats
6
Cockpit
2
Standard Cabin Seats
4
Min Crew
1
Flight Deck (Base Spec)
Garmin G3000
Flight Rules
IFR
Certification
FAA / EASA
OEM Verification
VERIFIED
-
Max Cruise Speed (ktas)
274
Long Range Cruise (ktas)
184
Max Range (nm)
1658
Range @ 75%
1385
Take-off Roll (ft)
2635
Take-Off (5000 / ISA + 10)
3998
Landing >50ft Obst. (ft)
2659
Max Climb Rate (fpm)
1556
Service Ceiling (ft)
30000
-
MRAMP (lbs)
6050
MTOW (lbs)
6000
MLW (lbs)
5800
MZFW (lbs)
4850
BOW (lbs)
3700
BEW (lbs)
3650
Useful Load (lbs)
2350
Max Payload (lbs)
2300
Fuel Capacity (lbs)
1642
Useful Load Max Fuel (lbs)
1692
Payload Max Fuel (lbs)
658
-
Wingspan (ft)
43.2
Overall Height (ft)
11.3
Length (ft)
29.7
Cabin Height (ft)
4
Cabin Width (ft)
4.1
Cabin Length (ft)
12.3
Cabin Volume (cu. ft)
165
Baggage Volume Int. (cu. ft)
20
-
No. of Engines
1
Manufacturer
Piper
Model
PT6A-42A
Horsepower
600
Flat Rating
ISA + 55
FADEC
No
TBO (hrs)
3600
Fuel Capacity (gal)
260
-
Flight Deck
Garmin G3000
Flight Rules
IFR
Standby Instrument
Aspen Avionics EFD1000
Autopilot
1 x Garmin GFC-700
PFD
2
MFD
1
GPS
2 x Garmin GIA64W
AHRS
2
ADC
2
Transponder
1 x Garmin GTX-335R (ADS-B OUT)
VHF Com
2
VHF NAV
2
-
Total Seats
5
Cockpit
2
Standard Cabin Seats
4
Min Crew
1
Lavatory
No
Galley / Refreshment
Refreshment Centre
Galley Location
MID
Max Cabin Altitude (ft)
8644
SL Cabin Altitude (ft)
12600
Cabin Pressure (psi)
5.6
-
Prop Manufacturer
Hartzell
Prop Description
4-Blade Constant Speed Reverse
Gear Type
Retractable
-
Pilot Training Credits
1
Airframe (Yrs)
5
Airframe (Hrs)
1500
Engine (Yrs)
7
Engine (Hrs)
2500
Prop (Yrs)
5
Prop (Hrs)
1500
Avionics (Yrs)
5

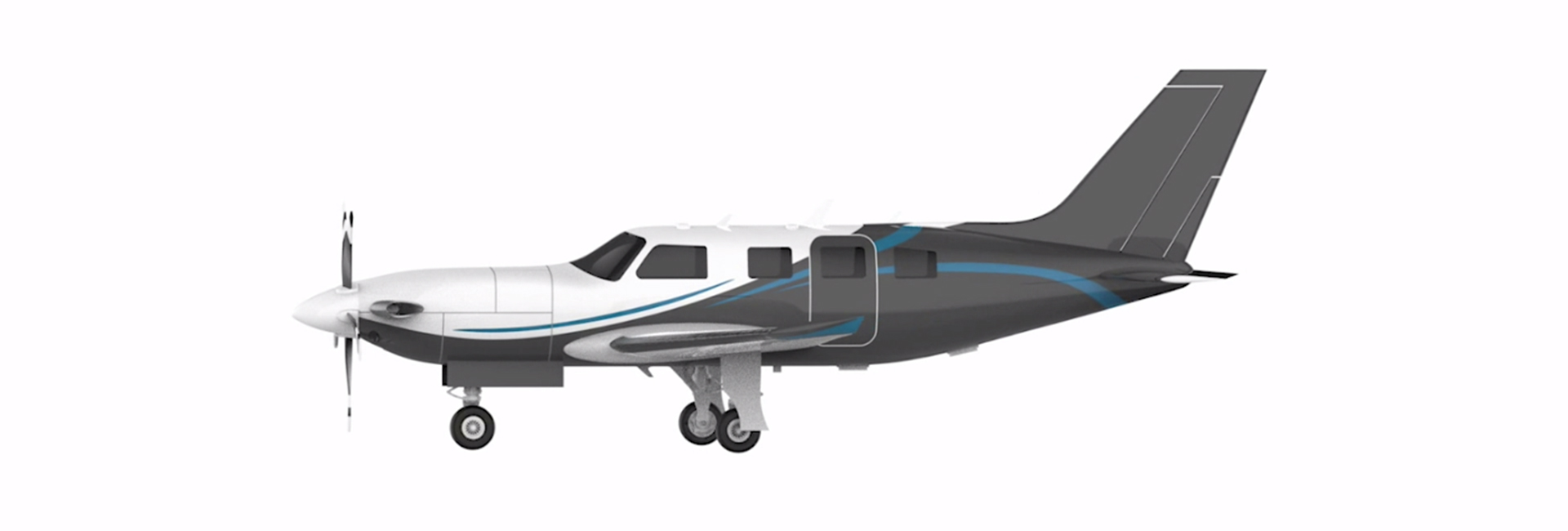

The Piper M600/SLS is a high-performance, pressurized, single engine turboprop, which has recently become the first GA aircraft to be FAA certified with Garmin AutoLand. This is a revolution in the industry and Piper have led the implementation in conjunction with Garmin.
The Piper M600/SLS is based on the Piper M500 (Piper Malibu Meridian) with an all-new clean-sheet wing design and increased fuel capacity enabling a 48% increase in range and a 17% increase in max gross weight over the M500. In addition to the performance increases the M600 has been equipped with the Garmin G3000 touch screen avionics including the new Piper ‘Halo Safety System’ AutoThrottle, AutoLand, Automatic Level Mode, SafeTaxi, Terminal Traffic and more.
The M600/SLS becomes the first GA aircraft to be certified with Garmin AutoLand, bringing well deserved acclaim.
The M600/SLS comes standard with the new Piper ‘Ultimate Care Program’ covering all scheduled maintenance as well as hourly and calendar inspections, and labor and parts for any mandatory Service Bulletins for the first 1,500 hours or 5 years.
The M600/SLS is powered by 1 x P&WC PT6A-42A turboprop engine generating 600 shp each, delivering a max speed cruise speed of 274 ktas and a max range of 1,406 nm.
