Aircraft Type
7X
Base Aircraft Price (USD)
-
Direct Operating Cost
$ 3,850
DOC / nm
$ 7.75
DOC / nm / Seat
$ 0.65
Max Cruise Speed (ktas)
516
Max Range (nm)
5950
Useful Load (lbs)
33600
Total Seats
17
Cockpit
3
Standard Cabin Seats
14
Max Cabin Seats
16
Min Crew
2
Flight Deck (Base Spec)
Honeywell Primus EASy II
Certification
FAA / EASA
OEM Verification
VERIFIED
-
Max Cruise Speed (Mach)
0.9
Max Cruise Speed (ktas)
516
Long Range Cruise (Mach)
0.8
Long Range Cruise (ktas)
458
Vref (kias)
106
Max Range (nm)
5950
Max Range Crew + 4 (nm)
5950
Max Range Crew + 6 (nm)
5950
Max Range Crew + 8 (nm)
5950
Take-off FL (ft)
5710
Take-Off (5000 / ISA + 10)
8045
Landing Roll (ft)
2070
Max Climb Rate (fpm)
2055
Service Ceiling (ft)
51000
-
MRAMP (lbs)
70200
MTOW (lbs)
70000
MLW (lbs)
62400
MZFW (lbs)
41000
BOW (lbs)
36600
BEW (lbs)
36400
Useful Load (lbs)
33600
Max Payload (lbs)
4400
Fuel Capacity (lbs)
31940
Payload Max Fuel (lbs)
1660
Max Baggage Weight (lbs)
2004
-
Wingspan (ft)
86
Overall Height (ft)
25.7
Length (ft)
76.7
Cabin Height (ft)
6.2
Cabin Width (ft)
7.7
Cabin Width - Floor (ft)
6.3
Cabin Length (ft)
39.1
Cabin Length - Seating (ft)
26.2
Cabin Volume (cu. ft)
1552
Baggage Volume Int. (cu. ft)
140
-
No. of Engines
3
Manufacturer
Dassault Falcon
Model
PW307A
Thrust (lbs)
6402
Flat Rating
ISA + 17
FADEC
Yes
TBO (hrs)
7200
-
Flight Deck
Honeywell Primus EASy II
FMS
3
Autopilot
2
PFD
2
MFD
2
GPS
3
AHRS
1
Transponder
2
VHF Com
3
VHF NAV
3
-
Total Seats
17
Cockpit
3
Standard Cabin Seats
14
Max Cabin Seats
16
Min Crew
2
Lavatory
2 Enclosed Flushing
Lavatory Location
FWD / AFT
Galley / Refreshment
Galley
Galley Location
FWD
Crew Rest
No
Jump Seat
Yes
Max Cabin Altitude (ft)
3900
SL Cabin Altitude (ft)
29200
Cabin Pressure (psi)
10.2
-
APU Manufacturer
-
APU Model
-
APU TBO (hrs)
-
-
Airframe (Yrs)
3
Airframe (Hrs)
1000
Engine (Yrs)
2
Engine (Hrs)
1000
APU (Hrs)
2000

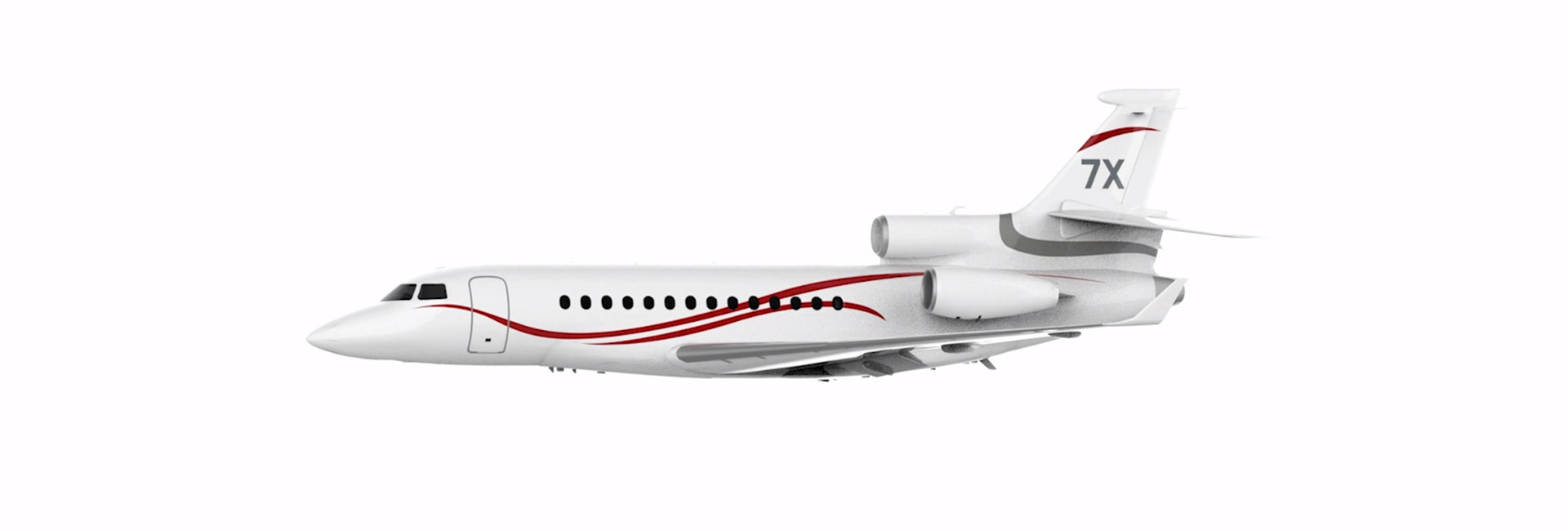

The Falcon 7X was the first business jet to implement a full Digital Flight Control System (fly-by-wire), paving the way for the entire sector. In addition to the advanced FCS, the Falcon 7X offers perhaps the quietest cabin experience that is only shared with the Falcon 8X.
The Falcon 7X is defined by its agility and efficiency, achieving between 15%-30% efficiency gains over any of its competitors, slower, safe and shorter landings. With a MLW at 90% of it MTOW the 7X enables longer multi-leg routes without refuelling.
The Falcon 7X optimises elegance, efficiency and performance
The flight deck in the Falcon 7X is equipped with the Honeywell Primus EASy avionics suite, with Enhanced Vision (EVS), Synthetic Vision (SVS) all combined on the Heads-up display (HUD), operated by an advanced fly-by-wire flight control system.
The Falcon 7X has a typical cabin configuration for 14 passengers spread among a 26.2 ft (seating area) three-zone cabin. The forward cabin is appointed by 4-place club, followed by a 4-place dining group and finally dual aft 3-place berthable divans.
The Falcon 7X is powered by 3 x P&WC PW307A generating 6,400 lbs thrust each, delivering exceptional performance in hot, high conditions including a service ceiling of 51,000 ft.
