Aircraft Type
M500
Base Aircraft Price (USD)
/
Direct Operating Cost
$ 579
DOC / nm
$ 3.11
DOC / nm / Seat
$ 0.78
Max Cruise Speed (ktas)
260
Max Range (nm)
1000
Useful Load (lbs)
1698
Total Seats
6
Cockpit
2
Standard Cabin Seats
4
Min Crew
1
Flight Deck (Base Spec)
Garmin G1000 NXi
Flight Rules
IFR
Certification
FAA / EASA
-
Max Cruise Speed (ktas)
260
Long Range Cruise (ktas)
157
Max Range (nm)
1000
Take-off Roll (ft)
1650
Take-Off >50ft Obst. (ft)
2438
Take-Off (5000 / ISA + 10)
2973
Landing Roll (ft)
1020
Landing >50ft Obst. (ft)
2110
Max Climb Rate (fpm)
1600
Service Ceiling (ft)
28000
-
MRAMP (lbs)
5134
MTOW (lbs)
5092
MLW (lbs)
4850
MZFW (lbs)
4850
BOW (lbs)
3436
BEW (lbs)
2792
Useful Load (lbs)
2300
Max Payload (lbs)
1707
Fuel Capacity (lbs)
1020
Payload Max Fuel (lbs)
539
-
Wingspan (ft)
43.2
Overall Height (ft)
11.3
Length (ft)
29.6
Cabin Height (ft)
4
Cabin Width (ft)
4.1
Cabin Length (ft)
12.3
Cabin Volume (cu. ft)
165
Baggage Volume Int. (cu. ft)
20
-
No. of Engines
1
Manufacturer
Piper
Model
PT6A-42A
Horsepower
500
Flat Rating
ISA + 55
FADEC
No
TBO (hrs)
3600
Fuel Capacity (gal)
170
-
Flight Deck
Garmin G1000 NXi
Flight Rules
IFR
Standby Instrument
Aspen Avionics EFD1000
Autopilot
1 x Garmin GFC 700
PFD
2
MFD
1
GPS
2 x Garmin GIA64W
AHRS
2
ADC
2
Transponder
1 x Garmin GTX-335R (ADS-B OUT)
VHF Com
2
VHF NAV
2
-
Total Seats
5
Cockpit
2
Standard Cabin Seats
4
Min Crew
1
Lavatory
No
Galley / Refreshment
Refreshment Centre
Galley Location
MID
Max Cabin Altitude (ft)
8244
SL Cabin Altitude (ft)
12600
Cabin Pressure (psi)
5.5
-
Prop Manufacturer
Hartzell
Prop Description
4-Blade Constant Speed Reverse
Prop Diameter
82.5
Gear Type
Retractable
-
Pilot Training Credits
1
Airframe (Yrs)
3
Engine (Yrs)
7
Engine (Hrs)
2500
Prop (Yrs)
5
Prop (Hrs)
1500
Avionics (Yrs)
3

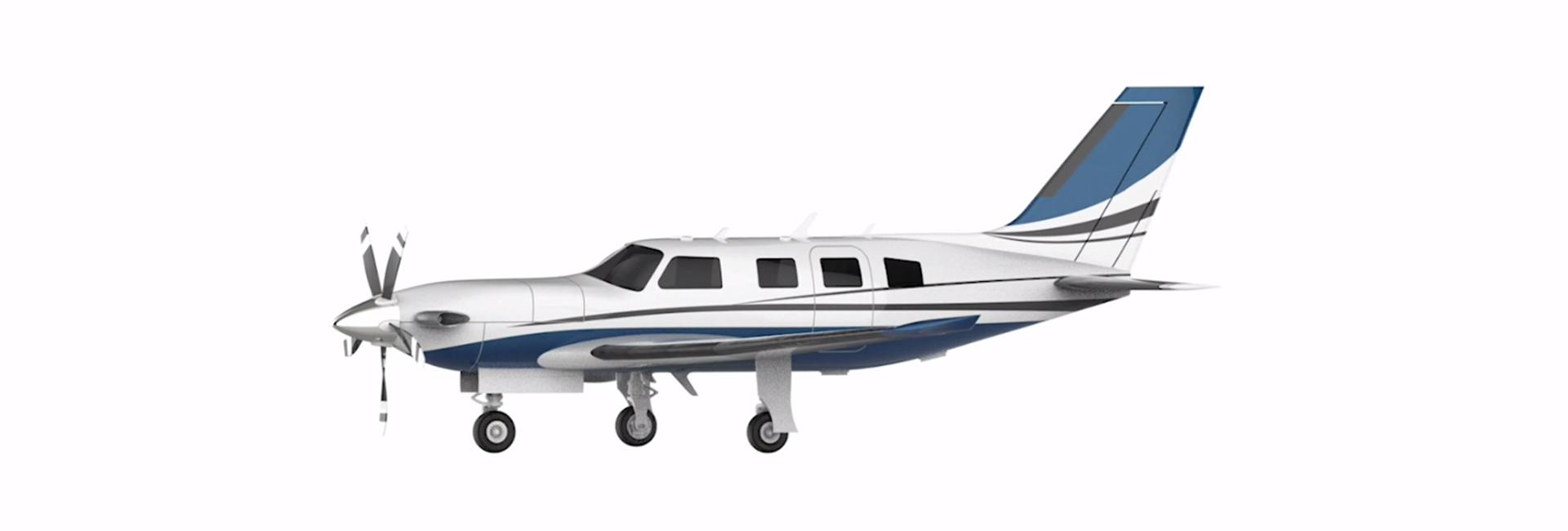

The Piper M500 is the latest variant of the Piper Malibu Meridian, a high-performance pressurized turboprop, upgraded with the Garmin G1000 NXi and ESP (Electronic Stability Protection) as standard.
The M500 is a high-performance pressurized turboprop with 1,000+ nm range.
The M500 is powered by 1 x P&WC PT6A-42A turboprop engine generating 500 shp, delivering a max speed cruise speed of 260 ktas and a max range of 1,000 nm.
